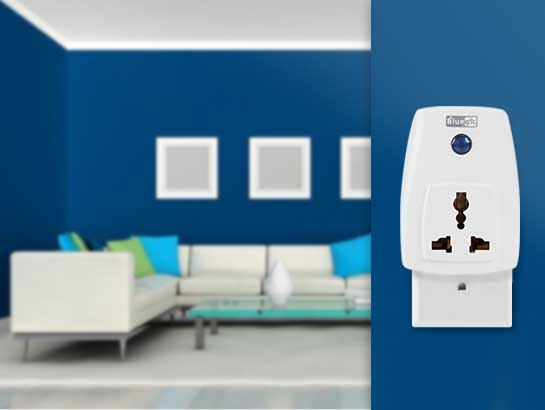

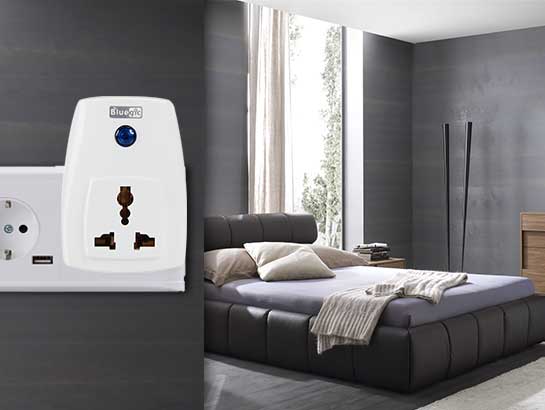

Smart Plug

Product Code: BG600

Color: Bluetooth plug

Socket: bluetooth plug

Voltage

Related Products

It's the world's first Bluetooth Wall Switch which compatibles with both IOS and Android. You can through this device to remote control lighting, fans, doors, heater and more at your SmartPhone!

Bluetooth Version

We use Bluetooth 4.0 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.

Android Support

We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.

Distance

Based on our test in open area, the practical range is over 50 m. Normally, you can turn on / off your device in living room while on your own bed.

Response Time

The response time of Bluetooth connection is 20 ms. This means, after you click the button on your smart phone, the device will response nearly immediately.

Frequency

The frequency range is 2.4 GHz. The 2.4 GHz band is available worldwide and the regulations are mostly compatible between the different authorities.

Standby Current

The standby current of the Bluetooth module is 0.4 uA. It's extremely low power requirements which a button cell can operate for "months or years".

Status Tracking

Our App is available to track your device's status at real time. If someone else updates the device status, it will reflect also on your phone.

Max No. of Devices

There is no limitation on the no. of devices to be added on your smart phone. Our App allows you to group the devices and control all at one click.

Timer Function

All our Bluetooth products contains timer function. You can specify a time to turn on / turn off the devices automatically.

Security

It's optional for user to setup a password for pairing your device. No unauthorized users can control your device without a password.

General
Product Name	Bluegic Bluetooth Plug
Model	BG600
Compliance	CE, CB (WIP for V2 version products)
Manufacturer	Designed by Bluegic in Hong Kong. Assembled in China.

Dimensions
Product Size	L: 85mm x W: 61.5mm x H: 32.9mm

Mechanical
Surface Materials	PC
Storage Conditions	-20°C to 70°C
Operating Environment	Indoor
Operating Temperature Range	-10°C to 50°C
Operating Humidity Range	0-90% relative humidity, non-condensing

Electrical
Input Voltage	110V / 60Hz or 220V / 50Hz
Frequency	50/60Hz auto detected at power-up
Resistive Load Current	Max 2A
Inductive Load Current	Max 1A
Standby Power	<0.3 watt

Bluetooth
Product Compatibility	Bluetooth Smart Ready products
Frequency	2.4GHz
Radio Transmission Power	0~4 dBm
Bluetooth Range	Open area: >50m
Bluetooth Chips Manufacturer	TI
Bluetooth Chips Certification	BQB
Bluetooth Version	Bluetooth 4.0

Full Demo Video
