Smart Light Bulb Adapter

Product Code: YO919


Related Products

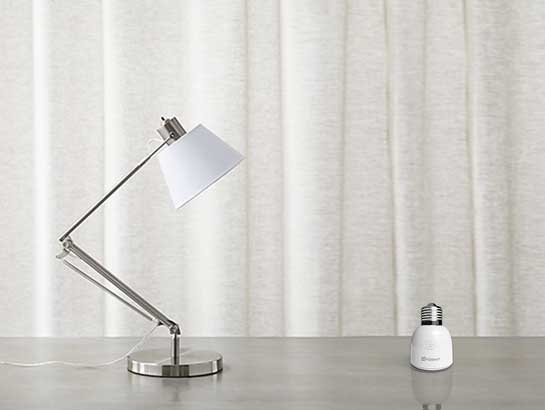

Turn Your Lamp into Smart Lighting by Just Adding the Smart Bulb Converter


Plays Well with......


Three Changable Socket
Lamps
Dimmable

Run Your Home from Your Phone

Mobile As Hub
Mobile As Hub
Voice Control
Voice Control
Mesh-like Network
Mesh-like Network
Remote Control
Remote Control
Room and Scenes
Away Detection
Away Detection
Schedule Timers
Schedule Timers
Password Protection
Password Protection
IFTTT
IFTTT

Bluetooth Version

We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.

Compatible Devices

We support all Smart Ready products with our application installed. Please Click Here to get the growing list.

IOS Support

We support IOS 7.0 or above versions. Also, we have separate applications with different resolution for iPhone and iPad.

Android Support

We support Android 4.3 or above versions. It's the first Android version with Bluetooth Smart support which has just been released on Aug 2013.

General
Product Name Yoswit Smart Bulb Converter
Model YO919
Compliance CE, FCC, RoHS
Manufacturer Designed by Yoswit in Hong Kong. Assembled in China.
Dimensions
Product Size

Front and Back View

Mechanical
Surface Materials V0 flame-tesistant PBT+fiberglass
Operating Environment Indoor
Operating Temperature Range -10°C to 80°C
Operating Humidity Range 0-90% relative humidity, non-condensing
Electrical
Input Voltage AC100-240V
Frequency 60/50Hz auto detected at power-up
Resistive Load Current 60 watt
Inductive Load Current 60 watt
Standby Power <0.3 watt
Bluetooth
Product Compatibility Bluetooth Smart Ready products
Frequency 2.4GHz
Radio Transmission Power 0~4 dBm
Bluetooth Range Open area: >50m; indoor: 10-20m
Bluetooth Version Bluetooth 4.0

WARNING !

warning

Disconnect Power

To prevent severe shock or electrocution, always disconnect the power at the service panel before installation. Only licensed electricians should carry out the installation.


Basic Installation

1

Make sure the power is turned off.

remove_old_switch

2

Verify that your bulb are electrically rated to operate with the requirement as stated in the specification.


3

Remove your original light bulb.

remove_old_switch

4

Insert the Bulb Cap into the lamp holder.

remove_old_switch

5

Connect the bulb to the Bulb Holder.

remove_old_switch

6

Switch on the power of your lamp.

remove_old_switch

Change of Bulb Cap

1

Make sure the product is not connected to power.

remove_old_switch

2

Use one hand to press the Cap Lock button.

remove_old_switch

3

Use another hand to hold the cap and turn it anti-clockwise.

remove_old_switch

4

Open the Cap.

remove_old_switch

5

Proper align the appropriate Cap to the bottom of the Bulb Holder.

remove_old_switch

6

Hold the Cap and turn it clockwise until you hear a slap, which means the Bulb Cap is locked to the Bulb Holder.

remove_old_switch

Installation complete.

Download the Yoswit App to your smat device and enjoy it now!

Yoswit will automatically detect the switch and add to your device list.

Download
Certification CE EMC CE LVD CE R&TTE FCC
User Manual Download
Data Sheet Download
Leaflet Smart Gadgets Full Catalogue Catalogue (ZH)
Yoswit App qrcode_androidqrcode_ios
Yoswit App (Android Apk) Download
